2s Lifting Time 12mm Panel 60t Capacity Tyre Killer Traffic Control Barrier

  • 1
  • 2
  • 3

Brand Name : SINOMATIC

Model Number : SN-TK01

Certification : CE/ ISO

Place of Origin : Shenzhen, China.

MOQ : Sample order accepted

Price : negotiable

Payment Terms : T/T,Western Union,

Supply Ability : 3,00 pcs per month

Delivery Time : 5-7 working days after payment received

Packaging Details : Carton/Plywood box/Pallet

Brand name : SHENZHEN SINOMATIC

Spike height : 120-180mm (One-way) 100-130mm (Two-way)

Spike thickness : 10mm

Panel thickness : 12mm

Standard color : Black and yellow

Lifting time : 1-2s

Contact Now

2s Traffic Safety Control 12mm Panel 60t Tyre Killer
High-level security one-way and two-way traffic safety control tyre killer with customizable spike barrier colors.
Available Tyre Killer Types
One-way and Two-way tyre killer systems available in two versions:
  • Version 1: Buried-free design for surface application
  • Version 2: Buried design for underground embedding
Key Features
  • Quiet and fast operation with 2-second response time
  • Solid and durable structure supporting up to 60-ton traffic capacity
  • Safe, reliable, and stable system performance
  • Precise operation with low noise levels
  • Wide operating temperature range: -40°C to +70°C
  • Low failure rate with high reliability and long life cycle
  • Easy maintenance with low maintenance costs
  • Compatible with other control equipment for automated operation
  • Manual operation capability during power failure for smooth vehicle passage

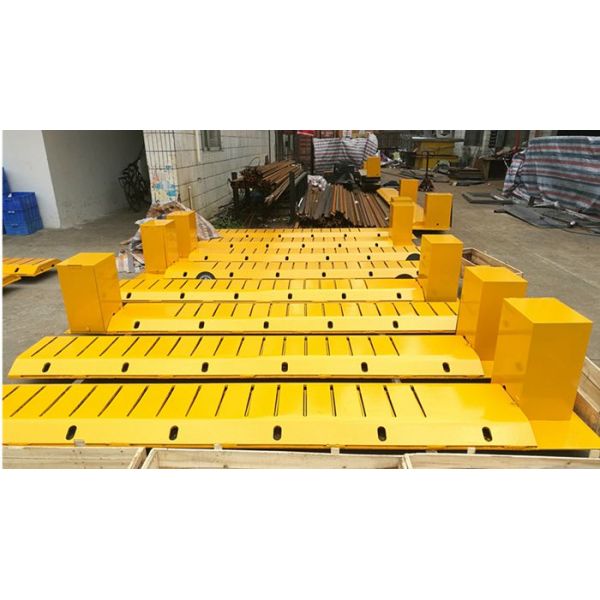

Production Photo
2s Lifting Time 12mm Panel 60t Capacity Tyre Killer Traffic Control Barrier
Tyre Killer System Components
The tyre killer system consists of three main components:
Main Frame: Constructed from A3 steel, steel blades, base, and drive shaft. The entire body features steel structure using GB A3 carbon steel plate and channel steel welding, providing high-strength load-bearing capacity and anti-collision capability. Internal design excludes electrical components and wiring for waterproof safety. Mounts on driveways or designated locations to limit vehicle traffic.
Electric Transmission Station: Includes motor, gear box, limit switch, optical axis, bearings, base, and full transmission components. Gear-free internal structure requires no maintenance, ensuring stable and longer lift performance. Serves as the power source and allows manual operation during power outages.
Electric Control Part: Comprises control board, transformer, relays, long-distance remote control device, and wire control device for comprehensive system management.
Technical Specifications
Product Automatic tyre killer
Material Q235 steel/A3 steel
Surface Treatment Paint with reflective stripe
IP Rating IP68
Standard Color Black and yellow
Length 3m to 6m (standard)
Width 700mm (standard)
Height from Ground 70～110mm
Minimum Weight Capacity 60T
Blade Height 150mm
Blade Thickness 10mm
Operation Mode Electromechanical
Working Environment -40℃～+70℃
Control Mode Short range wireless remote control/drive-by-wire
Control Distance ≤100M
Up/Down Speed 2s
Voltage 220V/110V ±10%
Case Reference
2s Lifting Time 12mm Panel 60t Capacity Tyre Killer Traffic Control Barrier
